Dual Flame Ionisation Detectors for simultaneous analysis of organic chemicals
Thermodynamically designed oven accommodates capillary and packed columns
Up to 5 individually controlled heated zones; up to 450 deg C for better method control
Optional accessories such as Head Space Sampler, Auto Liquid Sampler, Methaniser and
Auto Gas Sampling Valve
Advanced Chromatography Software – “CLARITY” from Data Apex
Cost effective solution for QA/QC/Research applications
Exceptionally compact size for better space utilisation

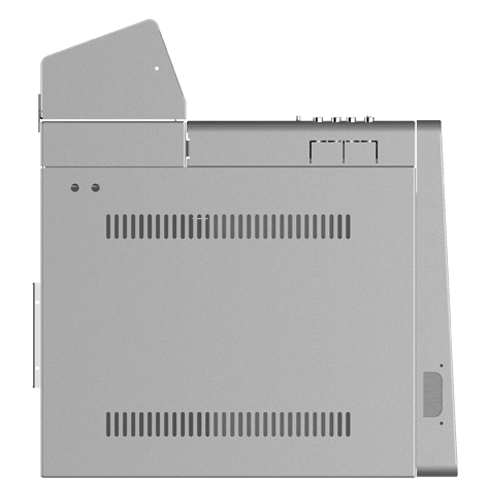

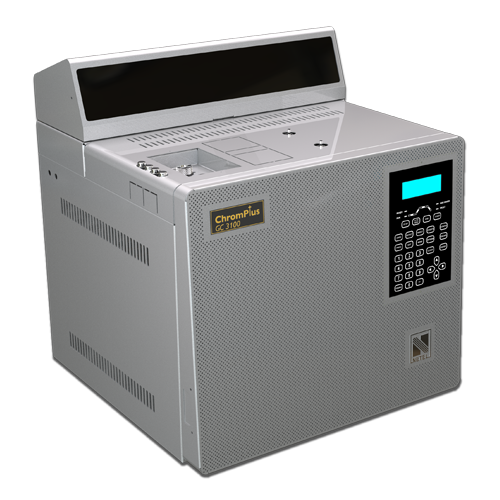

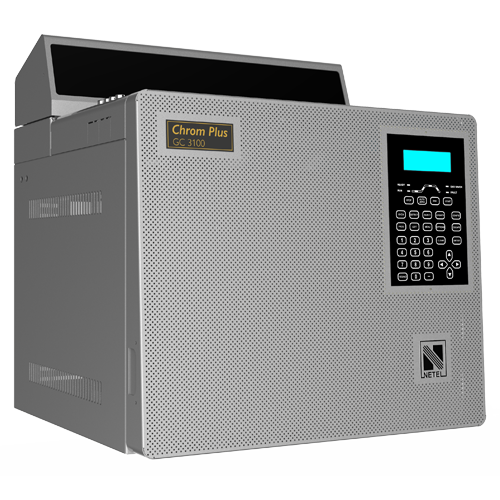

ChromPlus 3000 series
Detector
Injector Ports
Pneumatics
Model Number
Single FID
Dual FID
Capillary
Packed
Pressure Regulators
3100
Yes
No
No
Single
Yes
3110
Yes
-
Single
No
Yes
3200
No
Yes
No
dual
Yes
3210
No
Yes
dual
No
Yes
3220
No
Yes
Single
Single
Yes
Weight: 37kg (approx)
Dim: D 535mm • W 515mm • H 450mm
COLUMN OVEN
Size : H 290 mm x W 280mm x D160mm
Volume : 13.8Ltrs
Temperature :5°C above the ambient temperature to 400°C
Ramp Rate :1°C & 70°C per minute
No. of Ramps : 10
Cooling Rate : 250°C to 50°C within approx. 5 minutes at 25°C room temp.
Temperature Gradient : 2°C max (on 200 mm dia circumference,40mm from the sensor)
Temperature Accuracy : + 1 % of set value from 50°c to 400°c
Heated Zones : 3/5 Independent Heated Zones up to 400°C for individual control of Injectors, detector, oven
PNEUMATICS
Metal diaphragms regulators for Carrier gas, fixed flow restrictors for Hydrogen, Air and Make-up gas. Pressure switch provided to cut heating of oven, injector, FID power in the event of carrier gas flow depletion
Differential Flow Controllers for carrier gas for Packed Column
Injectors: Pressure range O to 2 kg/cm2 Constant Pressure
INJECTION SYSTEM
Single/dual Split/split-less (capillary column) injector or single/dual packed injection port
Temperature range settable up to 400°C. in the steps of 1°C
DETECTOR
High sensitivity flame ionization detector with auto flame ignition, Temperature range settable up to 400°C. in the step of 1 °C
Dynamic range 107
Minimum Detection Level equivalent 3pg C/sec of Dodecane
Optional detectors: TCD, ECD, NPD
DISPLAY
80 Characters (20 X 4 lines) LCD
KEYBOARD
32 Keys for setting of the parameters & eight status LED indications including oven ramp status
